Control system for an 85,000 m³/h air separation unit
Control system for a unit that separates air into oxygen, nitrogen and argon, with application software on Astra.Regul and emergency shutdown on Regul R500S.
- 3servers
- 4workstations

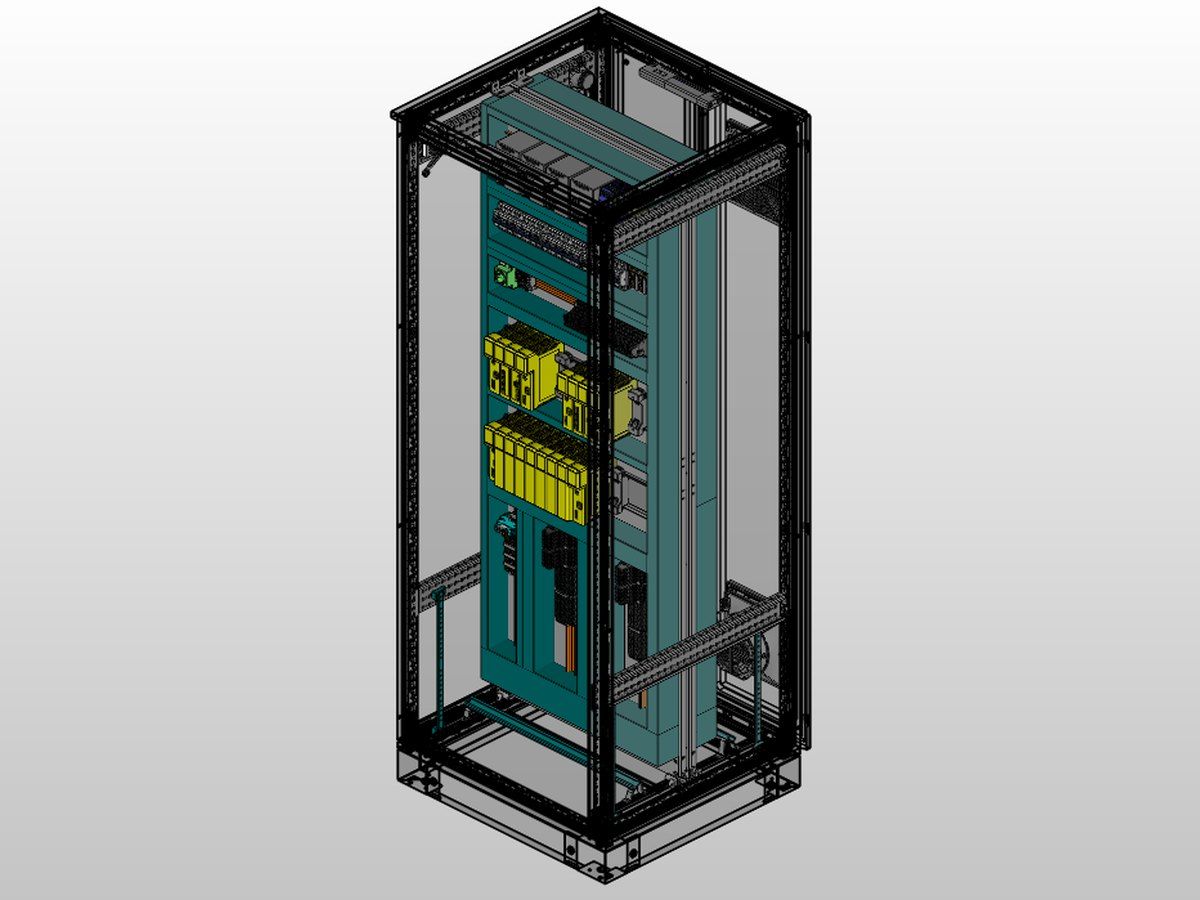

- 15cabinets
The air separation unit produces oxygen, nitrogen and argon from atmospheric air by low-temperature rectification. Air is compressed, cleaned of moisture and carbon dioxide, cooled to cryogenic temperatures and separated in rectification columns.
We designed the control system, developed the application software on the Russian Astra.Regul platform and the emergency shutdown logic on a Regul R500S controller. Interlocks and protections are in place; the purification unit sequence runs in automatic, step-by-step and manual modes.
The system has passed factory acceptance tests.
- Customer
- RusGazCryo LLC
- Operating company
- Steel company
- Equipment and software
- Scope of work
- Control system design
- Application software development
- Factory acceptance tests
